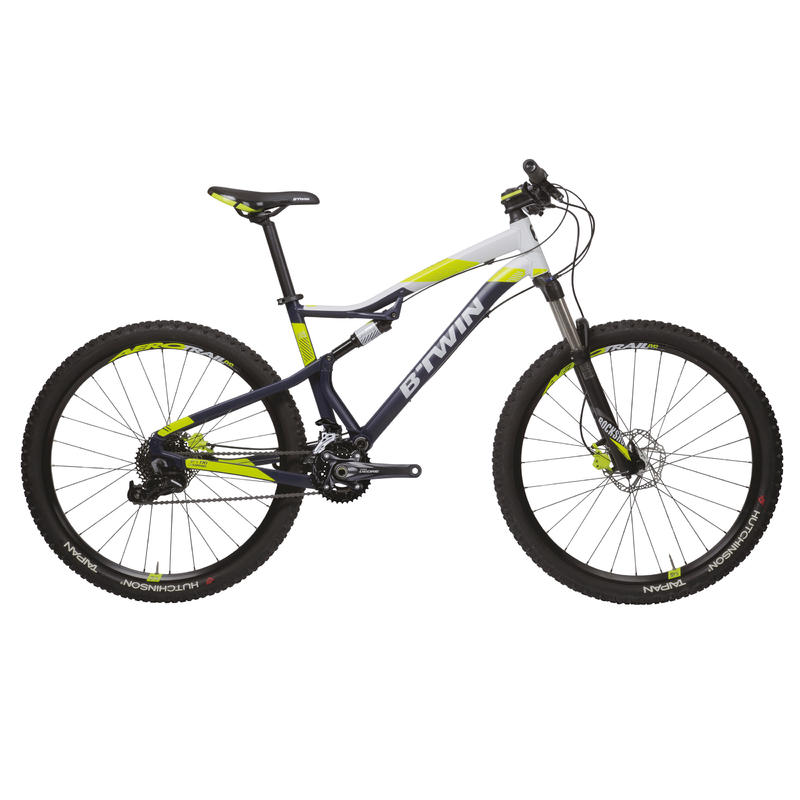

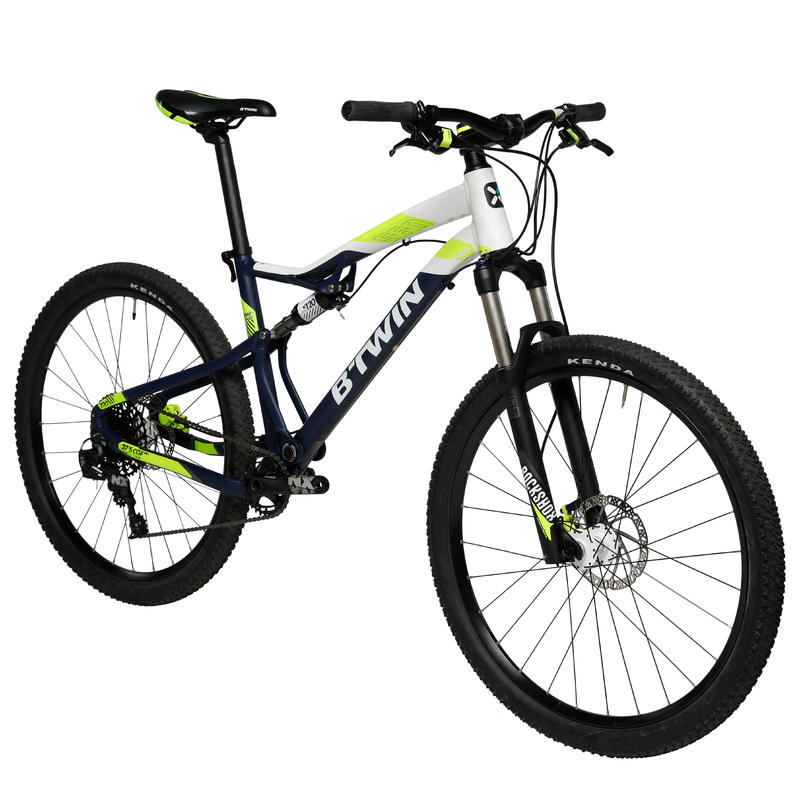

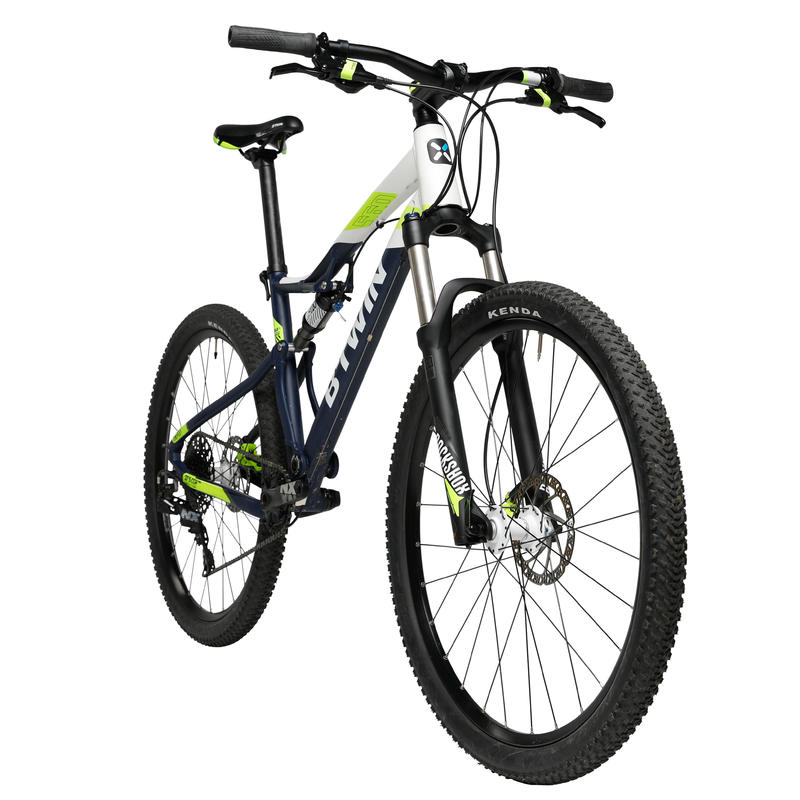

THE STORY OF THE ROCKRIDER 560 S MOUNTAIN BIKE...
Entirely designed and developed in France at the B'Twin Village (Lille), this mountain bike is the fruit of the work of an expert team of passionate mountain bikers. The Rockrider team designed and tested the Rockrider 560 S mountain bike with their mountain bike testers.
A UNISEX MOUNTAIN BIKE
Men's or women's mountain bike? The Rockrider 560 S mountain bike is unisex. For greater comfort, the women on our mountain bike team recommend replacing the saddle with the Women's 500 Sport saddle, which is adapted to women's bodies.
HOW DO I CHOOSE MY MTB SIZE?
Several sizes available: M: 1.60m to 1.75m L: 1.75m to 1.85m XL: between 1.85 m and 2 m If you are on the limit between 2 sizes: Choose the smaller size for easier steering (easier to handle) and comfort (straighter back). Choose the larger size for easier pedalling with a more stretched-out position (position more suited to performance).
A LIGHTER FRAME

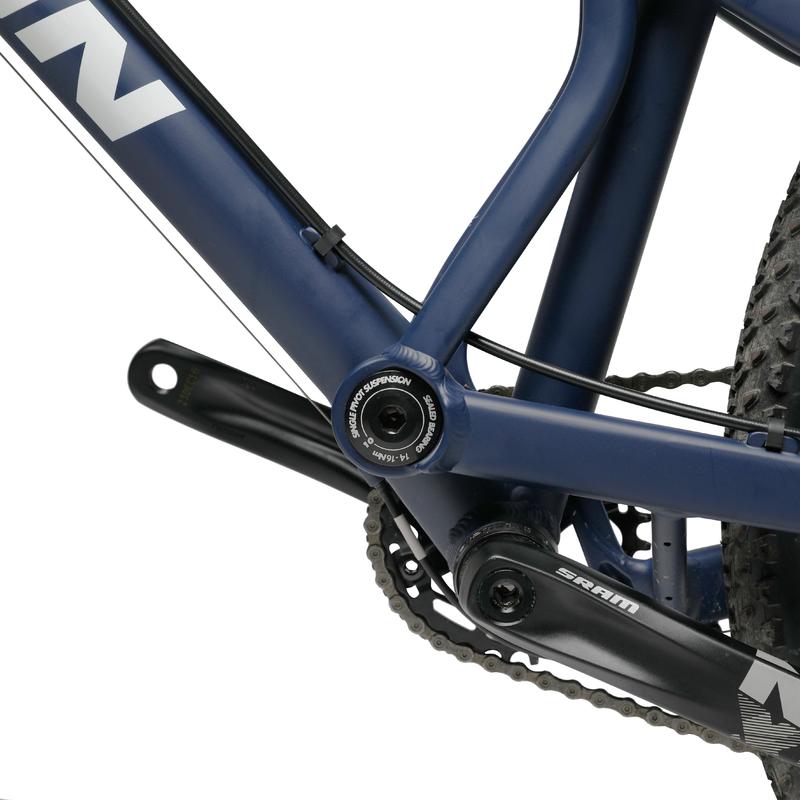

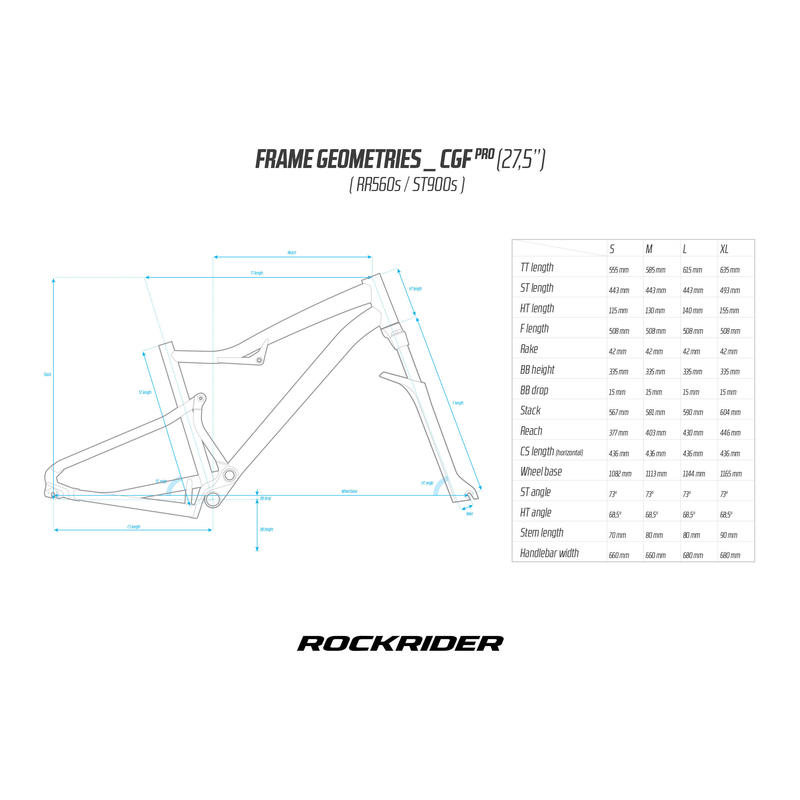

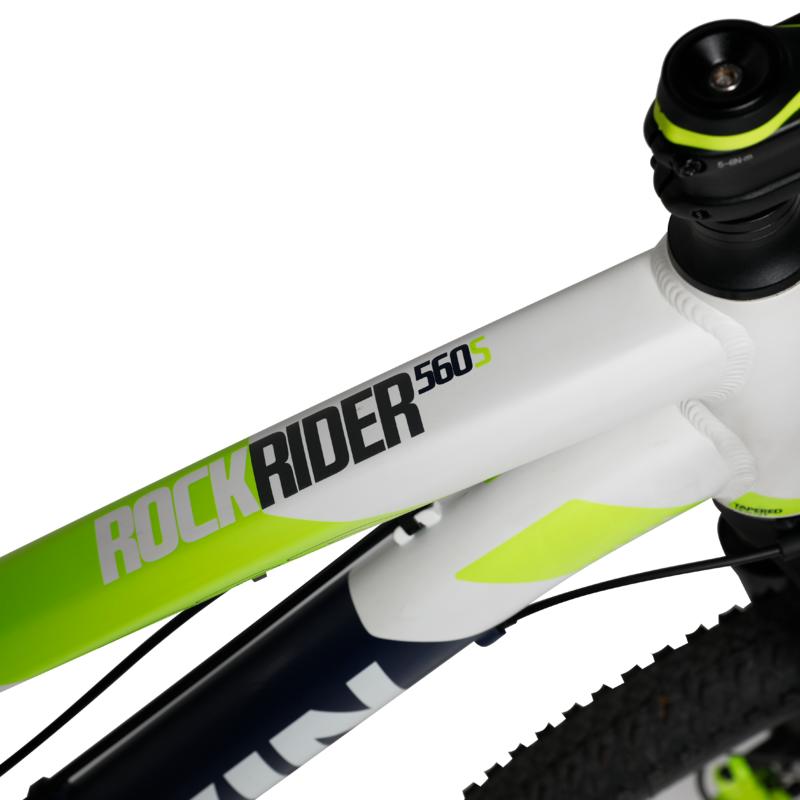

Our teams have specially designed the Rockrider CGF S Pro frame in 6061 aluminium (only 2.5 kg in size M). It is 200 grammes lighter than the CGF Evo on the RR540 S, thanks to the "double butted" front triangle. It is also more stable when turning thanks to the lower bottom bracket, which allows you to more easily touch your foot to the ground.

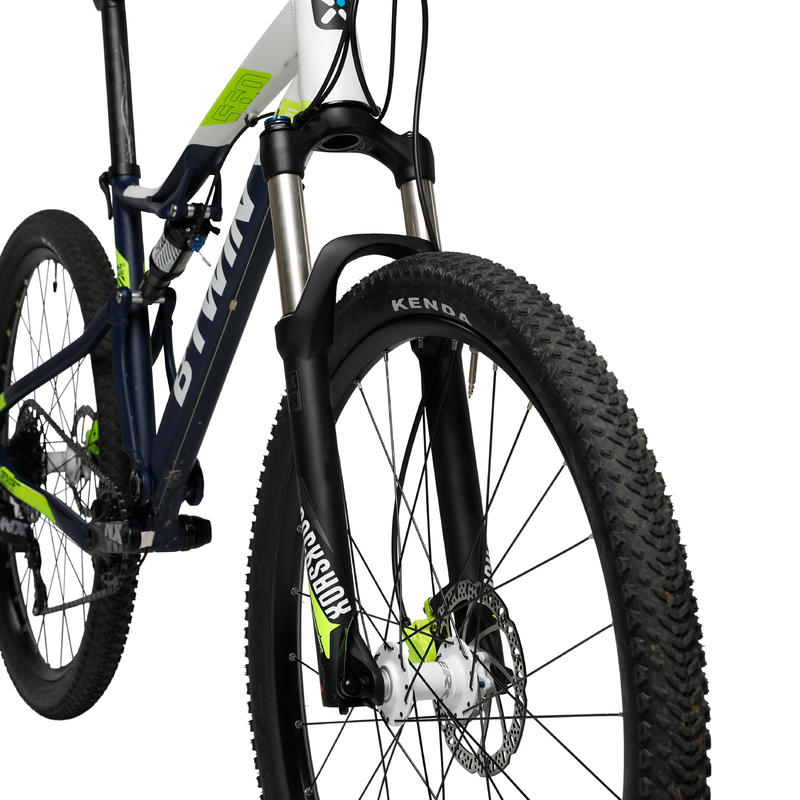

FRONT SUSPENSION: 120MM TO OVERCOME OBSTACLES

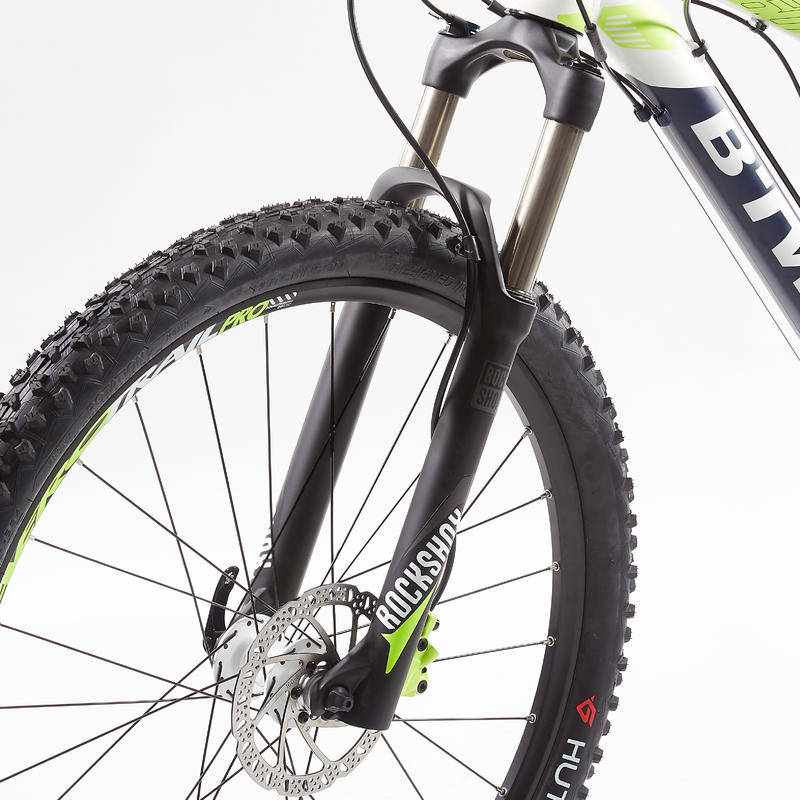

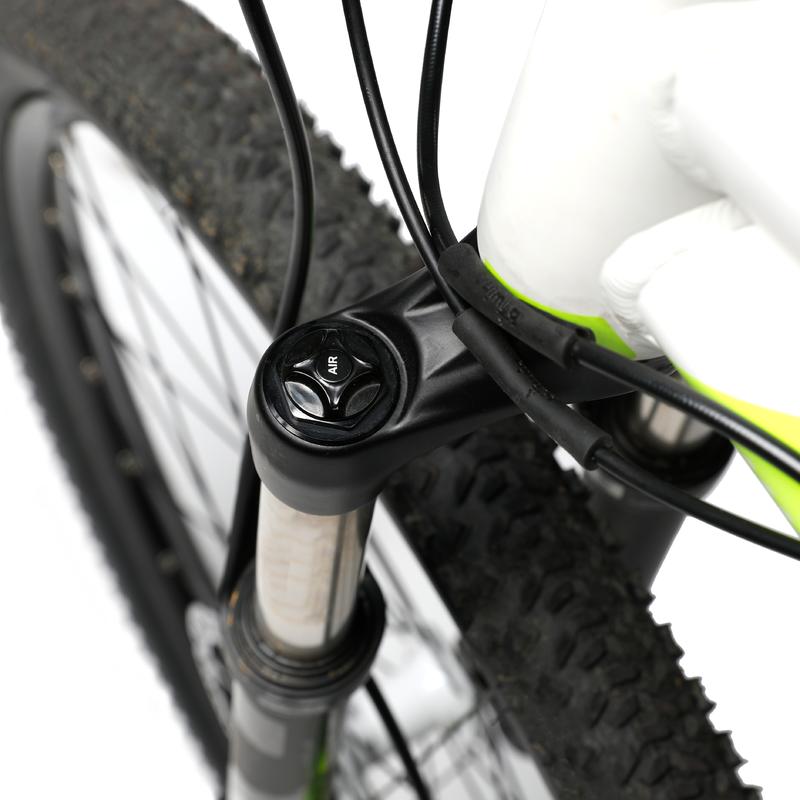

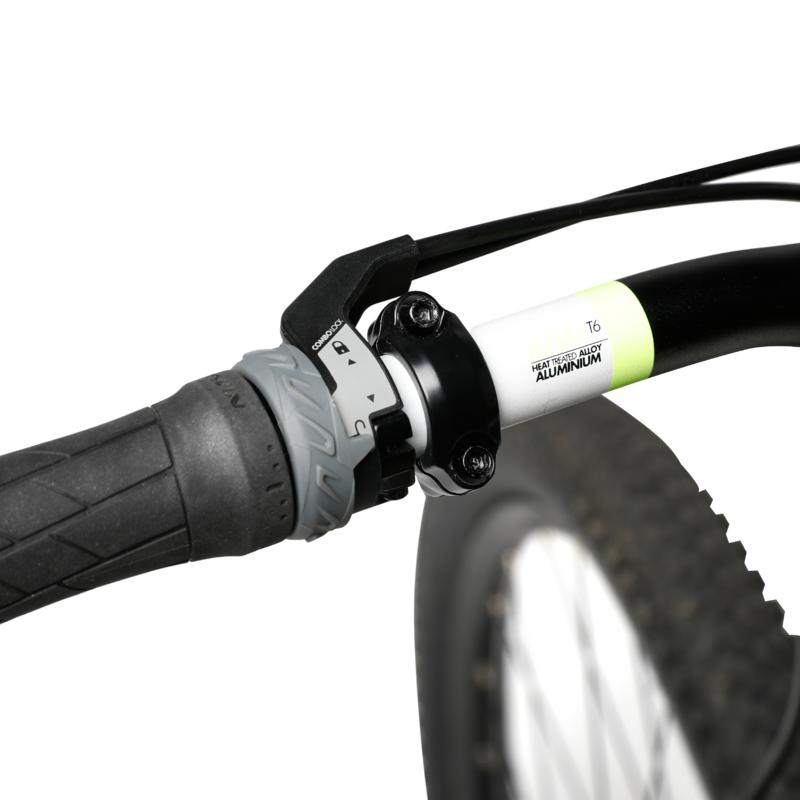

The 120 mm ROCKSHOX 30 SILVER AIR fork is 400g lighter than that of the RR540 S. Its conical shape is firmer when steering. Easily adjust the bounce and stiffness of the fork. Its COMBO LOCK quick-release handlebar system helps to prevent bobbing on smooth sections.

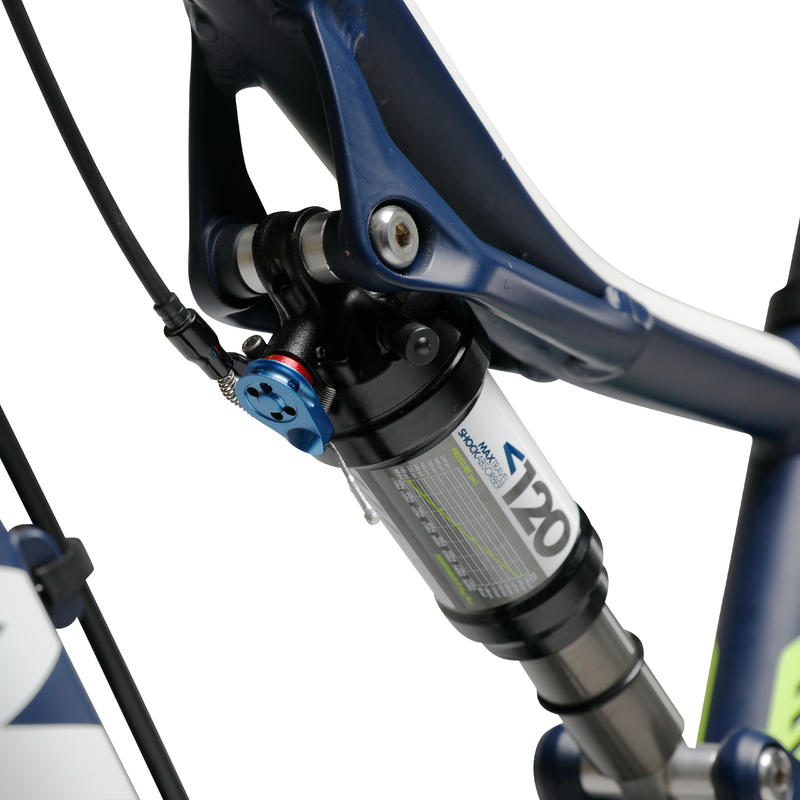

REAR SUSPENSION: AIR SHOCK

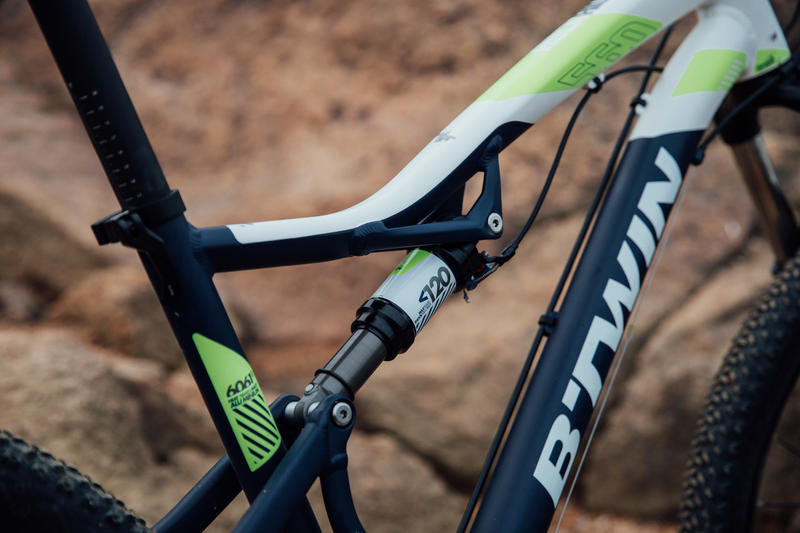

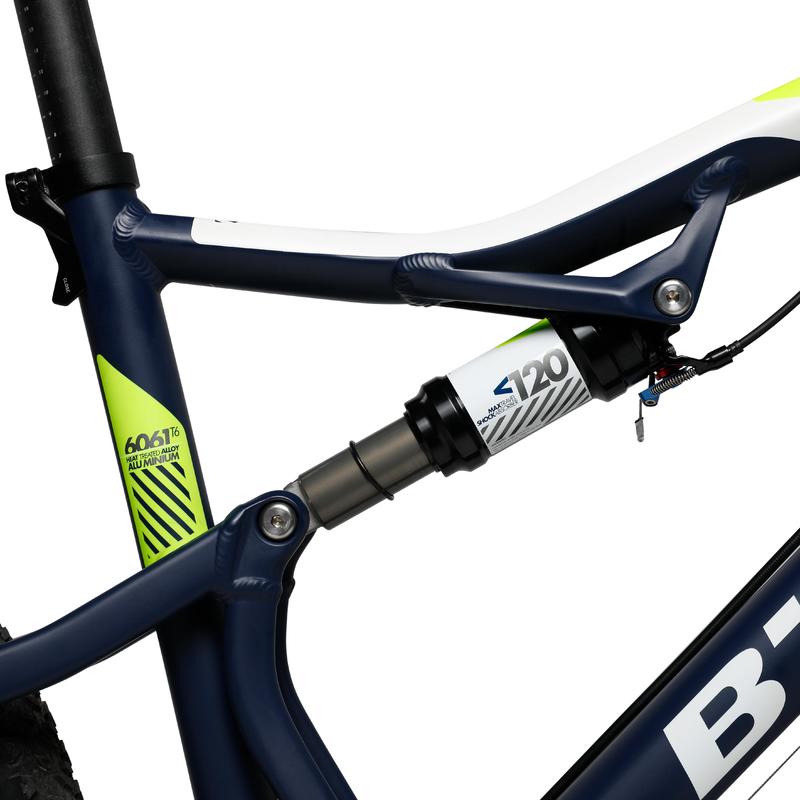

Have adventures everywhere with the X Fusion O2 Pro L Air shock, specifically adjusted for this frame. And lock it out on smooth sections to prevent bobbing. This can be done with a simple motion, at the same time as the front suspension, using the COMBOLOCK wheel on the handlebar. Please note: A specific "high pressure" pump is required to adjust this shock (B'Twin fork and shock pump - ref: 3310286).
DERAILLEUR & DRIVE TRAIN: REACH GREAT SPEEDS
2 x 10 speed chainwheels, 20 speeds total! 2 quick and easy shifters on the handlebar. Left (chainwheels): control ascents/descents. Right (speeds): more precise control over your pedalling. Details: - SHIMANO DEORE double chainwheel with hollow axle, 24 / 38 teeth. - SHIMANO DEORE front derailleur. - SHIMANO DEORE 10-speed rear derailleur. - SHIMANO DEORE shifters. - SHIMANO DEORE cassette, 10 cogs, 11 to 36 teeth. Drivetrain is 100 g lighter than the one on the Rockrider 540 S

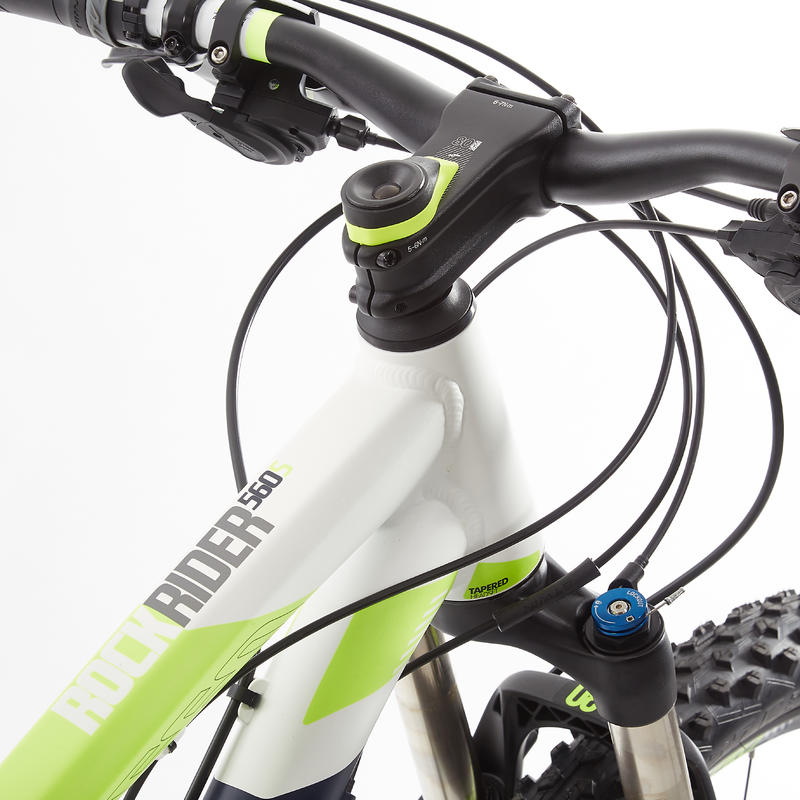

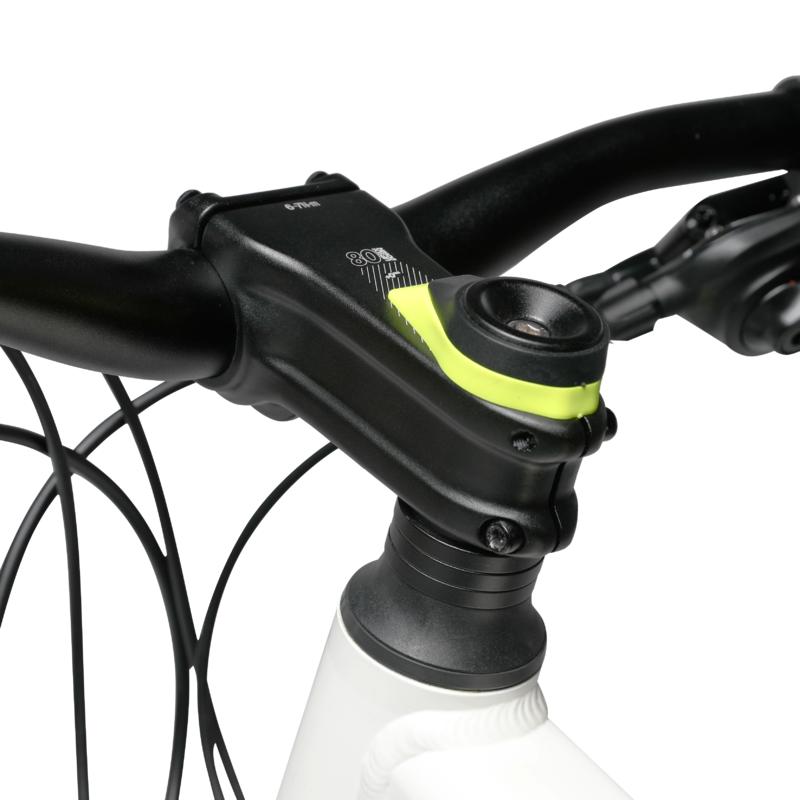

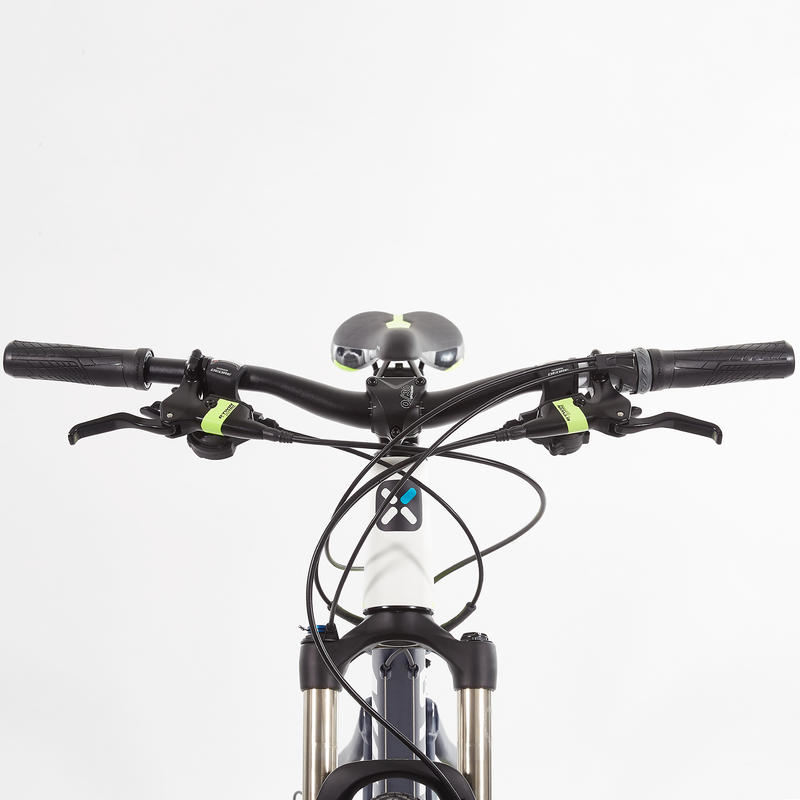

HANDLEBAR, STEM, GRIPS: TAKE CONTROL

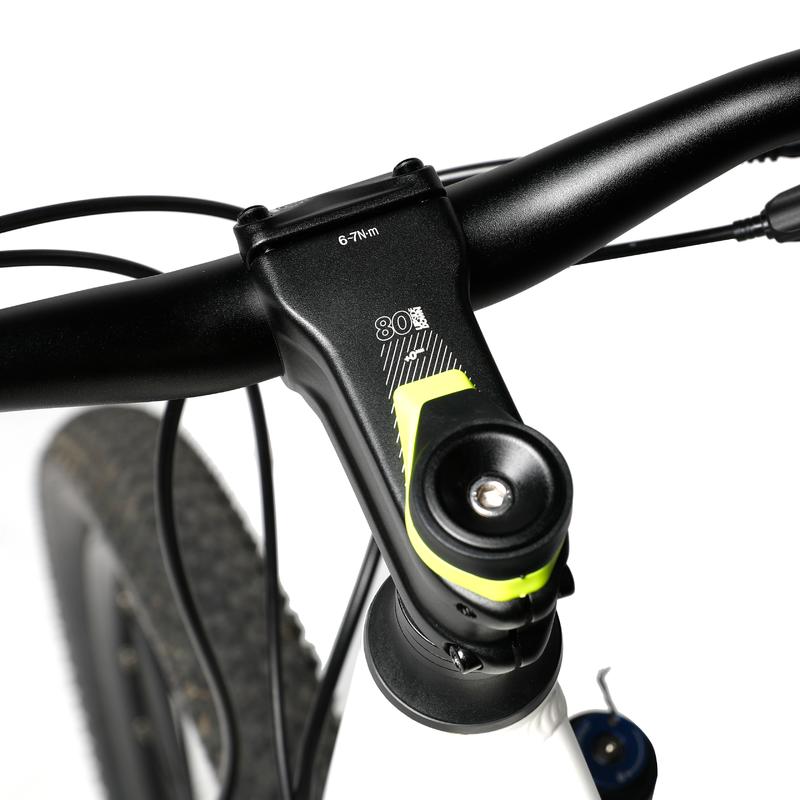

With its adjustable stem, the RR 560 S controls are close at hand. The all-aluminium B'Twin stem is 80 mm (size M/L), or 90 mm (size XL) and can be raised using 5 adjustment intervals: + 0 mm, + 7.5 mm, + 15 mm, + 22.5 mm, + 30 mm. Ergonomic grips for a natural grip without getting tired. In detail: - B'TWIN SPORT "oversize" aluminium handlebars are 660 mm wide (size M) or 680 mm wide (for L and XL) - A-headset semi-integrated headset holds its own

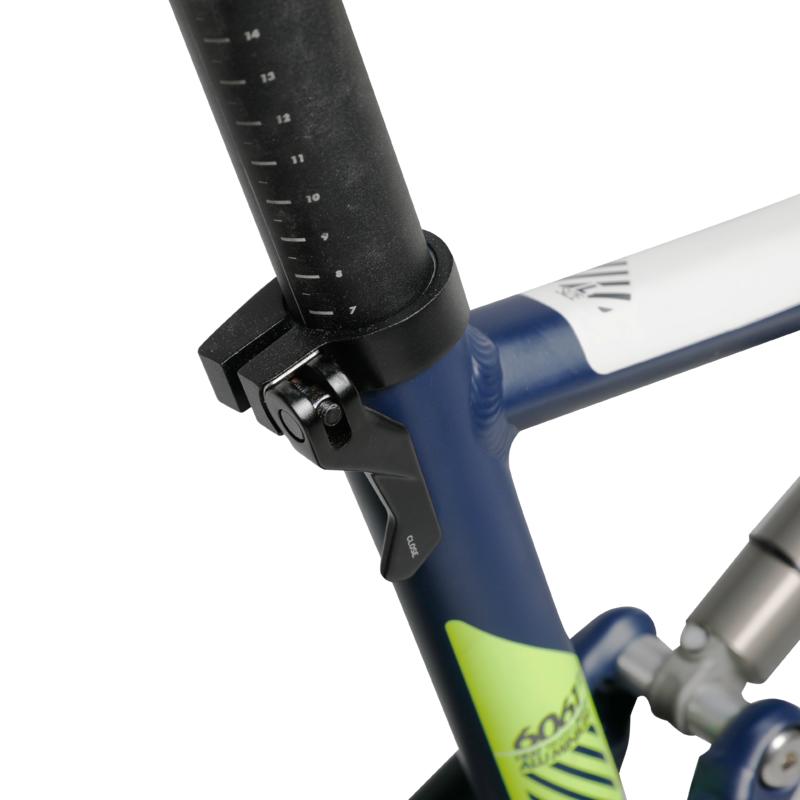

SADDLE / SEAT POST: COMFORTABLE AND SPORTY SEAT

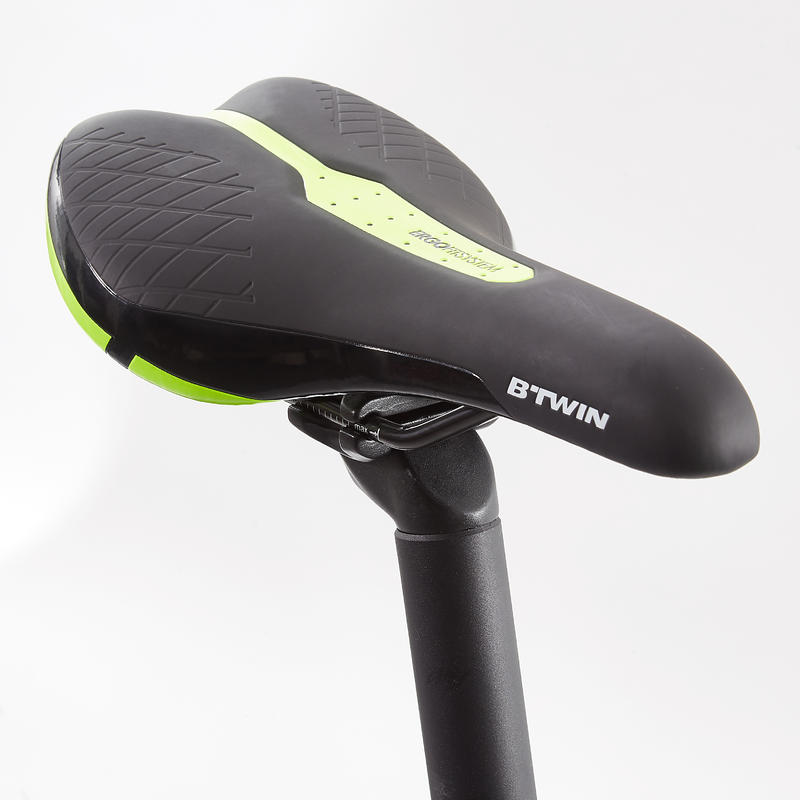

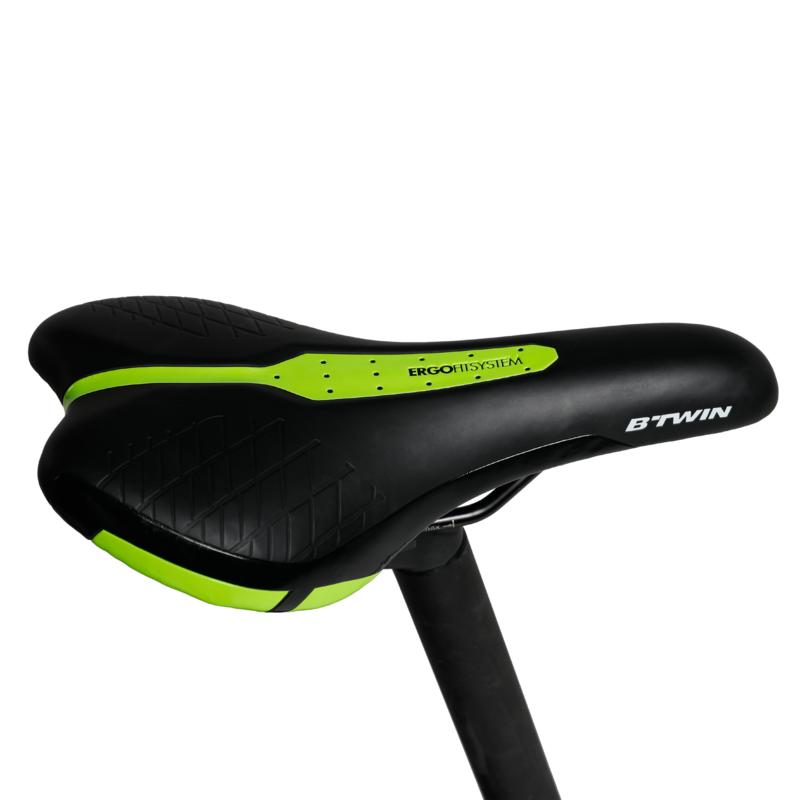

Our teams have designed the exclusive B'Twin Ergofit Evo saddle. Suitable for all hip sizes, its "hammock" shape is particularly good for sport touring. With a 31.6 mm diameter and 400 mm length, the aluminium B'TWIN SPORT seat post combines low weight and a wide range of adjustments for the perfect riding position. Adjust it easily with the ergonomic collar clamp (requiring 2 times less natural effort).

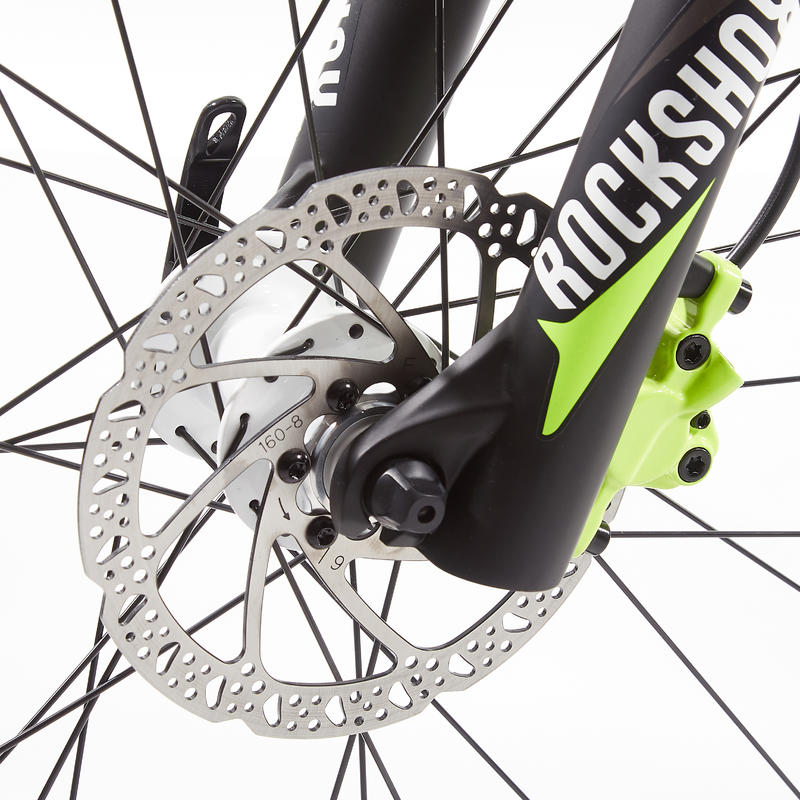

DOUBLE HYDRAULIC DISC BRAKES: GET A GRIP ON YOUR BRAKING

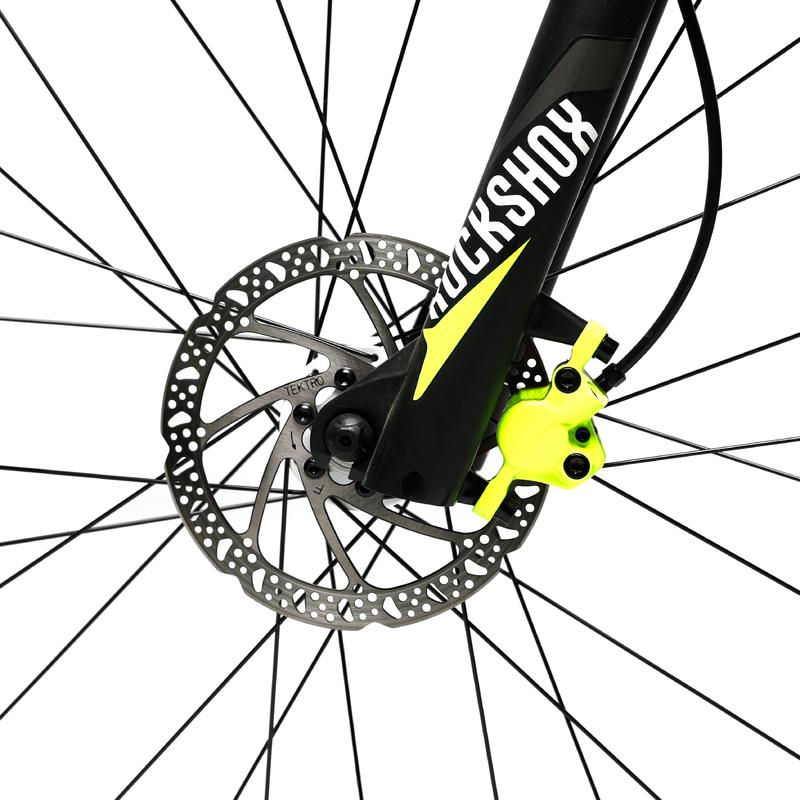

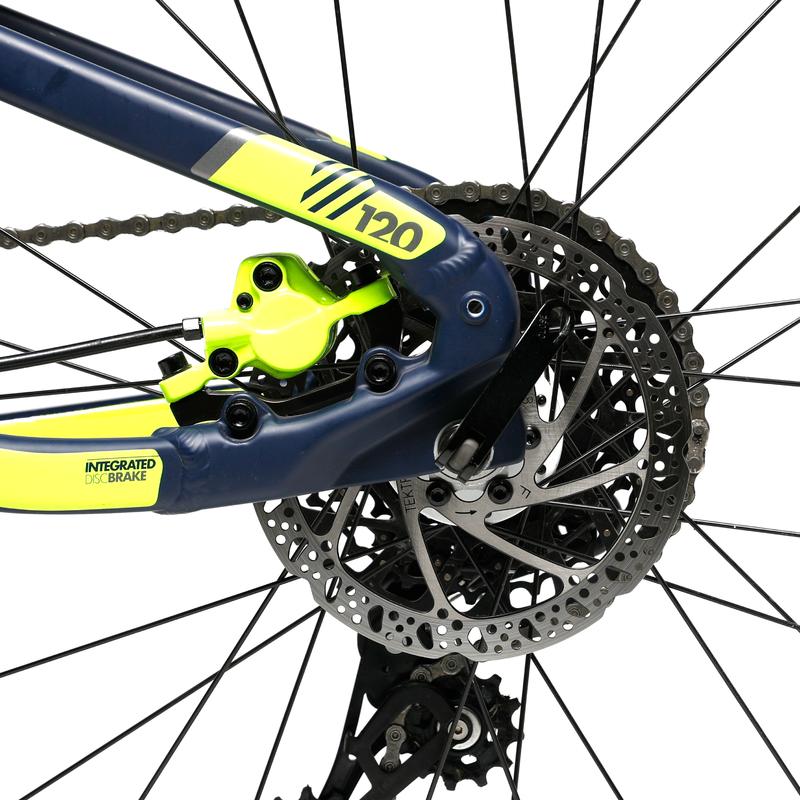

No matter what conditions you ride in (dry/wet), the B'Twin by Tektro 160mm double hydraulic disc brakes will do the job, even in the mud. Hydraulic brakes are more powerful and progressive, requiring much less effort when applying pressure on the levers. The Tektro aluminium brake levers are easy to handle, lightweight, and precise.
LIGHTER DOUBLE-WALLED 27.5" WHEELS
Embark on new adventures with the AERO TRAIL PRO 27.5" double-walled aluminium wheels. These specific sleeved-jointed rims combined with lighter tyres are 600 grammes lighter than those of the RR 540 S. The 27.5" diameter is the perfect balance between comfort and performance. With 28 spokes, they are lighter, while still guaranteeing rigidity and durability.
WIDE ALL-TERRAIN TYRES
The 27.5" x 2.20 HUTCHINSON TAIPAN tyres are all-terrain tyres with side lugs to guarantee good traction on turns. . Wider (2.2 cross-section), these tyres provide better traction on technical sections.
The RR 560 comes with B'Twin Flat Evo mountain bike platform pedals, with a wider pedalling surface and more prominent studs for a better grip on the pedal.
EASILY TRANSPORT AND STORE YOUR MOUNTAIN BIKE
Cycle touring does not start from home, that's why we have made it easier to remove and replace the front and rear wheels. They are equipped with a quick-release system.
13.4 kg in M without pedals.13.5 kg in L without pedals. 13.6 kg in XL without pedals. The weight can vary based on the tolerance of the components. The bike comes with B'Twin Flat Evo platform pedals. The total weight (bike + rider) should not exceed 120 kg.
Your RR560 S mountain bike comes with a bell, lighting, wheel reflectors, and pedals. The frame is compatible with: - front and rear mudguards, - stand, - bottle cage, - saddle bag, - cyclometer/GPS
OUR ADVICE FOR YOUR FIRST RIDE
During your first few rides, your bike's equipment will adjust (chain, derailleur, brakes, etc.) We offer a free servicing within 6 months following purchase. Our technicians will provide a 13-point inspection of your bike. Access all our advice on handling your bike: https://support.decathlon.fr/velos-tout-terrain-vtt-fr-tp_19822
